3-06:Non-Scrolling Input Image Specifications

Chapter 3-6: Input Processes

Non-Scrolling Input Image Specifications

The non-scrolling input Image overlay is shown in Figure 3-6-12:

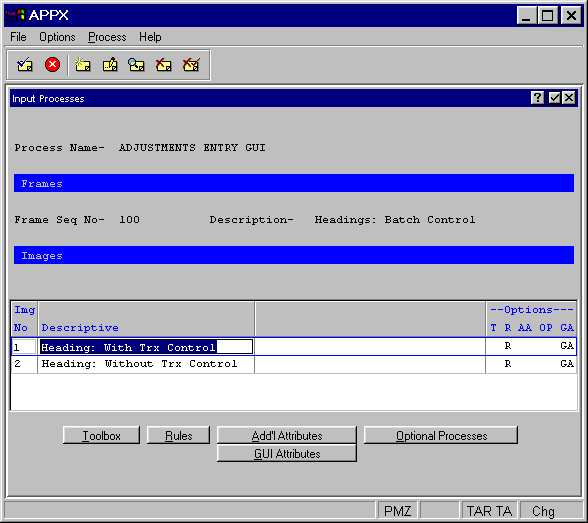

Figure 3-6-12. Non-Scrolling Input Image Overlay

The non-scrolling input image overlay contains the following fields:

· Img No displays a sequence number that is defaulted by APPX. The image number uniquely identifies each alternate image for the frame and is referenced when determining which image, if any, is to display. The first image that is defined in add mode is assigned alternate image number 1, and additional images are assigned a number equal to the highest existing image number, plus 1. The default number can be overridden, but must be unique within the frame. Refer to the Images section in Chapter 3-1 for a discussion of alternate images.

· Descriptive identifies this alternate image. The description is used for documentation purposes only.

· Options are indicators that are present whenever documentation (T), rules (R), additional attributes (AA), optional processes (OP), or graphical attributes (GA) have been defined for this image.

Both the non-scrolling and scrolling input images overlays offer the following options as described in the corresponding sections:

· Toolbox

· Rules

· Additional Attributes

· Optional Processes

· GUI Attributes
